Ink drying issues are among the most frequent and costly problems in industrial inkjet printing systems. When ink does not dry properly or consistently, it can lead to smudging, unreadable barcodes, production delays, and even equipment contamination.

In high-speed production environments, these problems become even more critical because there is almost no margin for error.

This article provides a systematic breakdown of common ink drying problems, their root causes, and practical industrial solutions.

Why Ink Drying Problems Occur in Industrial Systems

Ink drying is a complex interaction between:

1. Ink formulation

2. Substrate properties

3. Environmental conditions

4. Machine parameters

When any of these elements are unbalanced, drying issues appear.

In high-speed systems (50–300 m/min), even small deviations can cause immediate defects.

Related:

Ink Drying Time: What Affects Performance

Most Common Ink Drying Problems in Industrial Printing

1. Smudging After Printing

This is the most common issue.

Symptoms:

1）Ink transfers during stacking

2）Printed codes blur

3）Surface contamination appears

Root causes:

1）Slow evaporation rate

2）Excess ink volume

3）Non-porous substrate

2. Ink Not Drying Fast Enough

Symptoms:

1）Wet surface remains for too long

2）Production speed must be reduced

3）Conveyor contamination occurs

Root causes:

1）Water-based ink used on non-porous materials

2）Low airflow

3）Low temperature environment

Related:

How Quick Drying Ink Reduces Smudging

3. Barcode Readability Failure

Symptoms:

1）QR codes cannot be scanned

2）Partial fading or distortion

Root causes:

1）Incomplete drying

2）Ink spreading on substrate

3）Low contrast formation

4. Ink Transfer Between Products

Symptoms:

1）Ink sticks to adjacent products

2）Packaging contamination

Root causes:

1）nsufficient film formation

2）High humidity

3）Excess ink deposition

Technical Root Cause Analysis

Ink drying problems are not random—they follow predictable engineering causes.

1. Formulation Issues

Ink composition plays a primary role:

1）Low volatility solvents → slow drying

2）Weak resin systems → poor film formation

3）Unbalanced additives → instability

Related:

How Ink Formulation Impacts Print Quality

2. Substrate Compatibility Issues

Different materials behave differently:

Non-porous materials are the most problematic.

Related:

Industrial Ink for Plastic and Film Packaging

3. Machine Configuration Issues

Ink drying performance depends heavily on system setup:

1）Insufficient airflow

2）Incorrect printhead distance

3）Poor temperature control

4）Unstable conveyor speed

Industrial Solutions to Ink Drying Problems

1. Use Fast Drying Ink Formulations

Switching to solvent-based fast drying ink solves most smudging issues.

Benefits:

1）Rapid evaporation

2）Stable film formation

3）High-speed compatibility

Not sure which printer fits your application?

Consulting experts' advice

2. Optimize Environmental Conditions

Control key factors:

1）Increase airflow

2）Stabilize temperature (20–25°C ideal)

3）Reduce humidity

3. Adjust Ink Volume

Too much ink leads to:

1）Longer drying time

2）Higher smudging risk

Solution:

1）Reduce droplet size

2）Optimize print resolution settings

4. Improve Surface Treatment

For plastics and films:

1）Corona treatment

2）Plasma activation

Improves adhesion and reduces drying time.

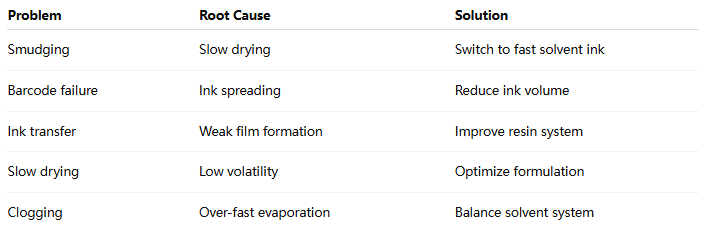

5. Problem-Solution Mapping Table

Real Industrial Case Study

Problem:

A packaging factory experienced:

1. Severe smudging at 160 m/min

2. Barcode unreadability

3. Frequent line stoppages

Root cause analysis:

1. Water-based ink used on plastic film
2. No airflow drying system
3. Excess ink deposition

Solution:

1. Switched to fast drying solvent ink
2. Installed controlled airflow system
3. Reduced ink volume per print

Result:

1. 88% reduction in defects
2. Stable 200 m/min production
3. Improved barcode scanning success rate

Preventive Strategies for Stable Ink Drying

1. Ink Selection Strategy

Always match:

1）Substrate type

2）Production speed

3）Environmental conditions

2. System Integration Strategy

Ink must work with:

1）Printhead design

2）Conveyor speed

3）Drying environment

3. Maintenance Strategy

Regular checks:

1）Nozzle condition

2）Ink viscosity

3）Airflow consistency

Related:

Ink Performance in High-Speed Production

When Ink Drying Problems Are NOT Ink Problems

Many factories misdiagnose issues.

Sometimes the real cause is:

1）Machine misalignment

2）Incorrect substrate treatment

3）Environmental instability

Ink is often blamed incorrectly.

FAQ

Q1: Why does ink dry well in testing but fail in production?

Because real production includes heat, speed, vibration, and humidity variations.

Q2: Can machine settings fix all drying issues?

No. Ink formulation is often the limiting factor.

Q3: Why does smudging happen only at high speed?

Because contact time becomes too short for stabilization.

Q4: What is the fastest fix for drying issues?

Switching to a compatible fast drying solvent-based ink system.
