In high-speed industrial inkjet production environments, ink performance is not just about print quality—it directly determines production stability, line efficiency, and total operational cost.

When production speeds exceed 100–300 meters per minute, even minor ink instability can lead to smudging, misalignment, unreadable codes, or complete production stoppages.

This article explains how ink performance behaves under high-speed conditions, what key parameters matter most, and how manufacturers can optimize ink selection for stable industrial output.

What “High-Speed Ink Performance” Really Means

In industrial inkjet systems, ink performance under high-speed conditions refers to:

1. Drying speed consistency

2. Jetting stability at high frequency

3. Adhesion on fast-moving substrates

4. Resistance to smudging and transfer

5. Barcode and code readability after printing

It is not a single property—it is a system-level behavior combining chemistry, physics, and machine dynamics.

Why High-Speed Production Challenges Ink Performance

At high speeds, the ink-substrate interaction time becomes extremely short.

This creates three critical challenges:

1. Reduced Contact Time

Ink has milliseconds to wet, adhere, and stabilize.

Not sure which printer fits your application?

Get a free quote

2. Mechanical Disturbance

Fresh ink is exposed to:

1）Rollers

2）Stacking pressure

3）Air turbulence

3. Thermal and Environmental Variation

High-speed lines often generate:

1）Heat buildup

2）Airflow inconsistency

3）Humidity fluctuations

All of which affect drying behavior.

Key Performance Indicators of Industrial Ink in High-Speed Systems

1. Drying Time Stability

Not just fast drying—but consistent drying across conditions.

Unstable drying causes intermittent defects, which are harder to detect in production.

2. Jetting Frequency Stability

Ink must maintain stable droplet formation at high frequencies (up to tens of kHz).

Poor jetting stability leads to:

1）Missing dots

2）Misalignment

3）Low-resolution codes

3. Adhesion Strength

Ink must bond instantly with:

1）Plastic films

2）Coated paper

3）Metalized surfaces

without requiring long curing time.

4. Smudge Resistance

Critical in downstream handling processes such as:

1）Conveyor stacking

2）Packaging compression

3）Automated sorting

Related:

How Quick Drying Ink Reduces Smudging

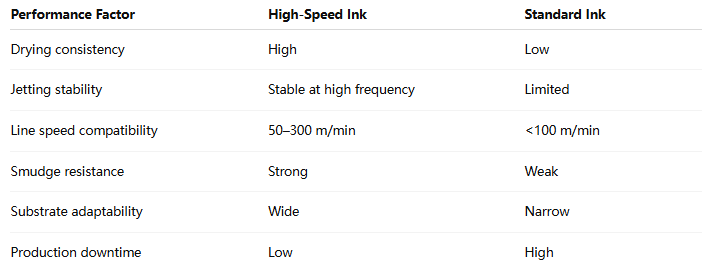

Industrial Comparison: Standard vs High-Performance Ink

How Ink Chemistry Controls High-Speed Performance

1. Solvent System Engineering

Fast-evaporating solvents improve drying speed but must be balanced to avoid nozzle drying.

2. Resin Network Formation

Resins determine:

1）Film hardness

2）Adhesion speed

3）Mechanical resistance

High Tg resins improve high-speed stability.

3. Viscosity Control

Viscosity must remain stable under:

1）High shear

2）Rapid ejection cycles

3)Temperature variation

Related:

How Ink Formulation Impacts Print Quality

Substrate Impact on Ink Performance

1. Non-Porous Materials (Plastic, Film)

1）No absorption
2）Full dependence on evaporation + film formation
3）Highest risk environment

Related:

Industrial Ink for Plastic and Film Packaging

2. Coated Paper

1）Moderate absorption
2）More stable performance
3）Lower smudge risk

3. Metalized Surfaces

1）Extremely low surface energy
2）Requires specialized adhesion chemistry

Machine Factors That Affect Ink Performance

Even the best ink can fail if machine conditions are not optimized:

1. Printhead temperature

2. Nozzle voltage stability

3. Airflow direction and speed

4. Conveyor synchronization

5. Surface pretreatment (corona/plasma)

Real Industrial Failure Scenarios

Scenario 1: High-speed packaging line instability

Problem:

1. Ink smudging at 220 m/min

2. Barcode scanning failures

Root cause:

1. Slow resin film formation

Solution:

1. Switch to fast-drying solvent ink system

Scenario 2: Intermittent missing print dots

Problem:

1. Inconsistent jetting at high frequency

Root cause:

1. Viscosity instability under heat

Performance Optimization Strategies

1. Ink-Equipment Matching

Ink must be matched with:

1）Printhead type

2）Operating frequency

3）Temperature range

2. Environmental Control

Control:

1）Airflow

2）Humidity

3）Temperature stability

3. Substrate Pre-Treatment

Techniques:

1）Corona treatment

2）Plasma activation

Improves adhesion and reduces smudge risk.

High-Speed Ink vs UV Ink Systems

Key Misconceptions in Industry

Misconception 1: “Speed depends only on machine”

Reality:
Ink chemistry is often the limiting factor.

Misconception 2: “Faster drying always improves performance”

Reality:
Over-fast evaporation can destabilize jetting.

Misconception 3: “All substrates behave the same”

Reality:
Surface energy differences completely change ink behavior.

FAQ

Q1: What is the most important factor in high-speed ink performance?

Ink stability under fast jetting and consistent drying behavior.

Q2: Why does ink fail at high speeds even if it works at low speeds?

Because dynamic conditions (heat, vibration, airflow) amplify instability.

Q3: Can equipment upgrades solve ink performance issues?

Only partially—ink formulation must be matched correctly.

Q4: What industries require highest ink performance?

Packaging, logistics, pharmaceuticals, electronics.

If your production line is experiencing:

1. Inconsistent print quality at high speed

2. Smudging or transfer issues

3. Barcode scanning failures

4. Ink instability under continuous operation

We can help you with:

1. High-speed ink performance analysis

2. Custom formulation recommendations

3. Industrial sample testing support

4. Full production line optimization guidance

Contact us to improve your inkjet production stability and reduce operational downtime.
