One of the most frustrating issues in plastic packaging production is seeing a perfectly printed code become unreadable only moments later.

The print looks sharp immediately after leaving the handheld inkjet printer.

A few seconds later, after passing through a conveyor, entering a packaging machine, or being stacked with other products, the code becomes blurred, partially transferred, or completely unreadable.

In many factories, the first reaction is to suspect the printer.

Operators may adjust print resolution, replace cartridges, or clean the printhead.

However, these actions often produce little improvement because the printer itself is rarely the root cause.

Smearing is usually the result of how the printed product moves through the production process after printing.

Successful industrial coding therefore depends not only on producing a high-quality print, but also on ensuring that the printed information remains intact until the product reaches its final destination.

As discussed in our Printing on Different Materials with Handheld Inkjet Printers: The Complete Industrial Guide, reliable industrial coding requires evaluating the complete interaction between material, ink, production conditions, and handling methods—not the printer alone.

This article focuses specifically on one stage of that process:

How manufacturers can prevent smearing and ink transfer during plastic packaging production.

Understanding the Difference Between Smearing and Ink Transfer

Although these terms are often used interchangeably, they describe two different production issues.

Understanding the difference helps manufacturers identify the correct solution.

Smearing

Smearing occurs when the printed image is distorted on the original product surface.

Typical causes include:

1. Contact before drying

2. Product vibration

3. Sliding movement

4. Operator handling

5. Conveyor instability

The code remains on the original package but loses clarity.

Ink Transfer

Ink transfer occurs when wet ink moves from one package to another.

Common situations include:

1. Products stacked too quickly

2. Bottles touching during transport

3. Shrink wrapping before surface stabilization

4. Automated packing systems applying pressure

Instead of becoming blurred, part of the printed image is physically transferred to another surface.

These two problems require different production adjustments.

Where Smearing Usually Happens

Many manufacturers concentrate on the printing station itself.

In reality, most print failures occur after the product leaves the printer.

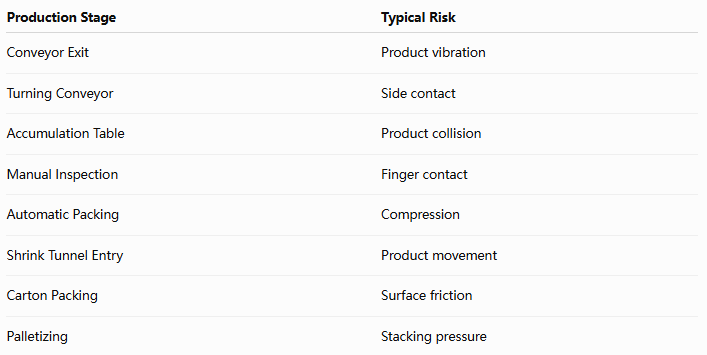

The following table summarizes common risk points.

Notice that the printer appears only once in the entire production process.

Most opportunities for smearing occur later.

This explains why improving the printing process often delivers better results than replacing printing equipment.

Mapping the Product Journey After Printing

Instead of evaluating only the printing station, experienced production engineers map the entire product journey.

A typical workflow may look like this.

Every transition introduces potential contact points that can affect print quality.

Reducing unnecessary product contact is often one of the most effective ways to improve coding performance without changing equipment.

Five Production Factors That Influence Smearing

Rather than adjusting printer settings immediately, engineers often evaluate the production process using five key factors.

1. Time Between Printing and First Contact

The period immediately after printing is the most vulnerable stage.

If products touch another surface too soon, even a well-printed code may smear.

Increasing the available travel distance before the first contact point often improves production stability.

2. Conveyor Stability

High conveyor vibration causes printed products to move unpredictably.

This increases the likelihood of:

1) Surface rubbing

2) Product collision

3) Character distortion

Smooth product movement is just as important as accurate printing.

3. Product Orientation

The direction in which a package travels can determine whether the printed area remains protected.

Whenever possible, manufacturers position the printed code away from high-contact areas during transportation and packing.

4. Operator Handling

Manual inspection remains common in many production facilities.

Repeated touching of freshly printed areas can reduce print quality even when the printer performs perfectly.

Simple changes in handling procedures often reduce reject rates.

5. Packaging Equipment Synchronization

Modern packaging systems combine multiple machines operating at different speeds.

If one section accelerates faster than another, products may collide or compress before the printed surface has stabilized.

Coordinating production speeds throughout the line helps minimize these issues.

Production Layout Often Has More Impact Than Printer Settings

Many manufacturers invest considerable time optimizing printer parameters while overlooking production layout.

In practice, relocating the printer by a short distance or adjusting the sequence of downstream equipment may provide a greater improvement than changing print resolution or replacing cartridges.

Questions worth evaluating include:

1. Can the printer be positioned earlier in the production line?

2. Is there enough conveyor length for initial drying?

3. Can the printed side avoid direct contact during transport?

4. Are products accumulating unnecessarily before packaging?

5. Can packaging equipment be synchronized more effectively?

These process improvements often require little investment while significantly reducing print defects.

Need Help Optimizing Plastic Packaging Printing?

If your production line experiences smearing, transferred codes, or inconsistent print quality, our engineering team can evaluate your packaging workflow and recommend practical improvements for both equipment setup and printing performance.

How Packaging Equipment Influences Print Quality

In many production facilities, the handheld inkjet printer produces a clear and readable code, yet quality problems still appear before products leave the factory.

The reason is that packaging equipment does more than move products—it determines how freshly printed surfaces interact with surrounding objects.

Every conveyor, guide rail, transfer belt, shrink wrapper, and carton packer creates potential contact points. If these contact points are not considered during production planning, print quality can deteriorate even when the coding system performs exactly as expected.

Rather than evaluating the printer as an isolated device, manufacturers should consider the entire packaging line as one integrated process.

Conveyor Design Can Reduce or Increase Smearing Risk

The conveyor is often the first stage after printing.

Its design directly affects how stable products remain while the printed code is curing.

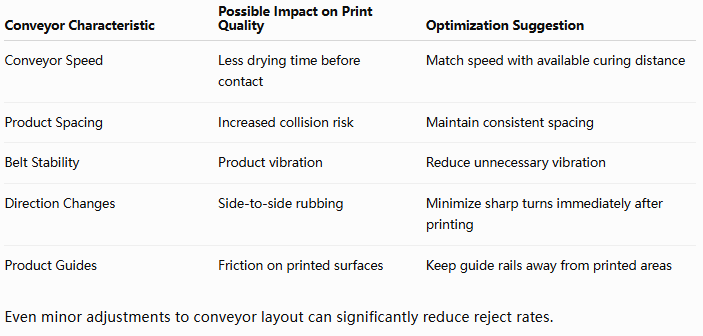

The following factors deserve particular attention.

Packaging Machine Contact Points

Many manufacturers focus on the print station while overlooking what happens inside the packaging machine.

Freshly printed packages may contact:

1. Compression belts

2. Side guides

3. Positioning blocks

4. Push mechanisms

5. Wrapping film

6. Carton feeders

7. Product separators

Each contact point should be reviewed during production trials.

If contact cannot be avoided, engineers should verify that sufficient curing time exists before the interaction occurs.

Product Orientation Matters More Than Many Manufacturers Realize

One effective way to reduce smearing requires no equipment replacement at all.

Simply changing where the code is printed on the package may dramatically reduce contact during production.

For example:

During product design, engineers often collaborate with packaging teams to identify locations that balance visibility with protection.

Synchronizing Printing with Packaging Speed

A coding system does not operate independently.

Its performance depends on how well it is synchronized with the rest of the production line.

Problems frequently occur when:

1. The packaging machine accelerates faster than the coding station.

2. Products accumulate between machines.

3. Emergency stops create unexpected product contact.

4. Operators manually reposition products before the ink has stabilized.

Instead of increasing printer output alone, manufacturers should review the production rhythm of the entire line.

Maintaining consistent flow is often more valuable than maximizing the speed of one individual machine.

Establishing Quality Control Before Smearing Becomes a Production Issue

Many factories inspect printed codes only after finished products have already entered cartons.

By that stage, correcting defects becomes expensive.

A more effective strategy is to establish checkpoints throughout the production process.

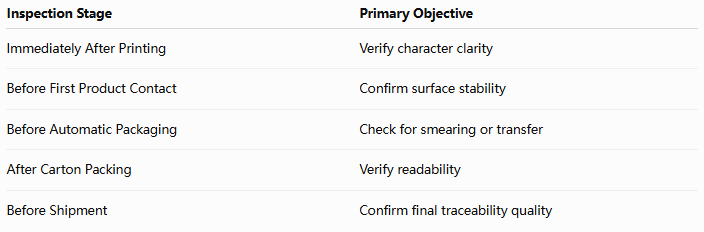

Recommended Inspection Schedule

Early detection reduces waste and prevents defective products from moving further through production.

A Practical Production Audit Checklist

When recurring smearing problems occur, replacing equipment should not be the first response.

Instead, engineers can perform a structured production audit.

Printing Station

1. Is the print positioned correctly?
2. Is the print distance consistent?
3. Is product movement stable during printing?

Conveyor System

1. Do products collide after printing?
2. Is spacing consistent?
3. Are there unnecessary turns or vibration?

Packaging Equipment

1. Which components touch the printed surface?
2.Can those contact points be reduced?
3. Is product orientation appropriate?

Quality Verification

1. Are random samples checked throughout the shift?
2. Are reject trends recorded?
3. Are seasonal environmental changes monitored?

This type of audit often reveals opportunities for improvement without additional capital investment.

Case Study: Reducing Smearing on a Personal Care Packaging Line

A manufacturer of personal care products experienced intermittent barcode failures on plastic bottles.

Initial troubleshooting focused on replacing cartridges and adjusting print settings.

However, a production review revealed that the printed area contacted a side guide less than five seconds after coding.

Rather than replacing the printer, the engineering team implemented three process changes:

1. Increased spacing between bottles.

2. Repositioned the print location away from the guide rail.

3. Extended conveyor travel before the packaging machine.

After validation, the production line achieved:

The improvement resulted primarily from process optimization rather than equipment replacement.

Need Help Optimizing Your Packaging Line?

If your factory experiences smearing, transferred codes, or inconsistent barcode quality, our technical team can evaluate your production workflow and recommend practical improvements based on your packaging process—not just your printer.

Creating a Standardized Printing SOP for Plastic Packaging Production

For manufacturers producing thousands or millions of plastic packages every month, relying on operator experience alone is not enough.

A printing process that works perfectly during one production shift may experience problems later because of:

1. Different operators

2. Different production speeds

3. Seasonal temperature changes

4. New packaging suppliers

5. Equipment adjustments

The most reliable approach is to create a standardized operating procedure (SOP) that defines how printing quality should be maintained.

A well-designed SOP helps production teams achieve consistent results regardless of who operates the equipment.

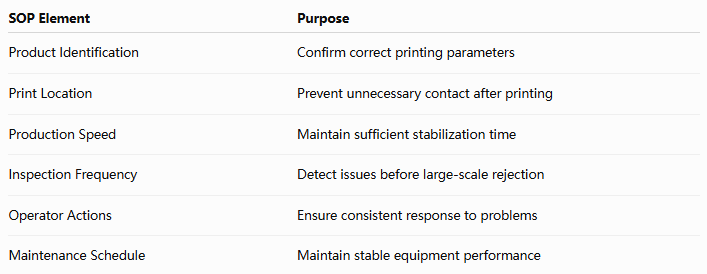

Key Elements of a Plastic Packaging Printing SOP

A practical SOP does not need to be complicated.

It should clearly define the factors that directly influence print quality.

The goal is not simply to create documents.

The goal is to make successful production repeatable.

Production Trial Validation Before Full-Scale Manufacturing

Before approving a printing process for mass production, manufacturers should perform controlled validation.

A common mistake is testing only a few samples.

A better approach is to simulate actual production conditions.

Recommended Validation Process

This approach identifies problems before they affect thousands of finished products.

How to Reduce Ink Transfer During Storage and Transportation

Printing problems do not always appear immediately after production.

Some failures occur hours or days later.

Examples include:

1. Stacked products rubbing against each other

2. Packaging pressure causing transfer

3. Warehouse temperature changes affecting stability

4. Long-distance transportation creating repeated friction

For this reason, manufacturers should evaluate the complete product lifecycle.

A code that survives the production line but fails during transportation still represents a quality problem.

Common Questions About Plastic Packaging Printing

Why does my printed code look good initially but smear later?

This usually indicates that the printed surface has not stabilized before contact occurs.

The issue may be related to production timing, handling, or packaging sequence rather than the initial print quality.

Can increasing print resolution solve smearing problems?

Usually not.

Higher resolution improves image detail but does not prevent physical contact or insufficient drying time.

Smearing problems should first be investigated from a production workflow perspective.

Should the printer always be installed at the end of the production line?

Not necessarily.

The optimal printing position depends on:

1. Available drying distance

2. Product movement

3. Packaging sequence

4. Contact points after printing

In some cases, moving the printer earlier in the process improves reliability.

How can manufacturers know if the problem is caused by the printer or the production line?

A useful method is controlled testing.

If printed samples remain stable when isolated but fail after passing through packaging equipment, the issue is likely related to downstream handling.

Does faster production always increase smearing risk?

Higher speed can increase risk because less time is available before product contact.

However, a well-designed production workflow can maintain reliable coding even at high speeds.

Should barcode testing be part of packaging quality control?

Yes.

A code that appears visually acceptable may still fail automated scanning.

Barcode verification should be included in quality checks whenever traceability depends on machine-readable information.

How often should packaging printing processes be reviewed?

Reviews are recommended whenever there are significant changes, including:

1. New packaging designs

2. New suppliers

3. Production speed changes

4. Equipment modifications

5. Customer specification updates

Reliable Plastic Packaging Printing Requires Process Control

Preventing smearing and ink transfer on plastic packaging is not achieved by focusing on the printer alone.

A reliable coding process requires coordination between:

1. Printing equipment

2. Ink performance

3. Product movement

4. Packaging machinery

5. Quality control procedures

The most successful manufacturers treat industrial coding as part of the complete production workflow rather than as an isolated printing step.

By analyzing where products contact each other, controlling the time between printing and handling, and establishing clear production standards, companies can significantly reduce rejected products and maintain consistent traceability.

For manufacturers using handheld inkjet printers on plastic packaging, the biggest improvements often come from optimizing the process around the printer—not simply upgrading the printer itself.

Improve Your Plastic Packaging Coding Process

If your production line experiences:

1. Smudged expiration dates

2. Transferred batch codes

3. Unreadable barcodes

4. Inconsistent printing results

5. Packaging-line interruptions

our technical team can help evaluate your application and recommend improvements.

Support includes:

1. Packaging workflow analysis

2. Printing parameter recommendations

3. Material and ink compatibility evaluation

4. Sample testing

5. Handheld inkjet printer selection

6. Industrial coding optimization
