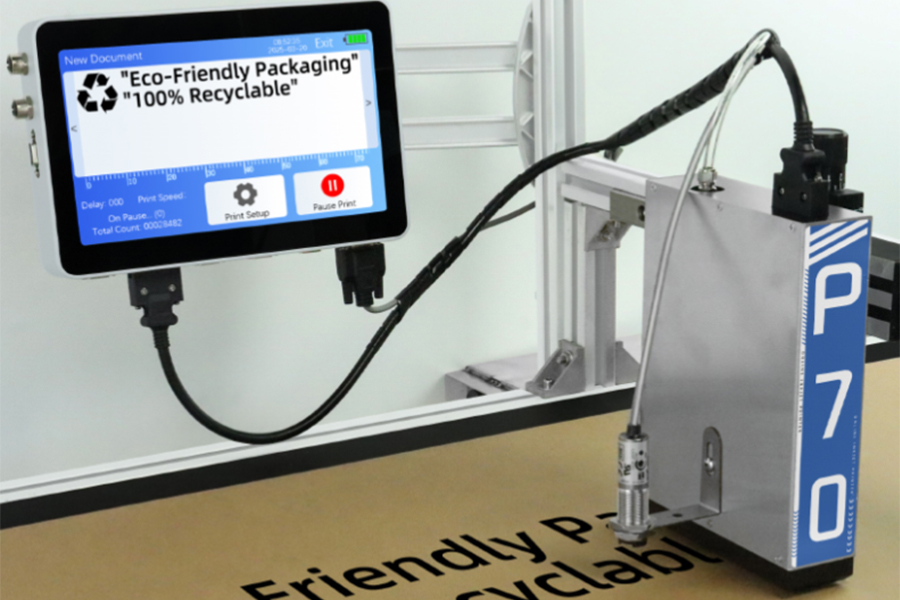

Print alignment problems are a critical issue in industrial inkjet coding systems. Even a slight misalignment can cause shifted characters, unreadable barcodes, or overlapping prints, which directly impact product traceability and compliance.

In high-speed production environments, alignment errors often go unnoticed until downstream scanning or quality inspection fails.

This article explains why alignment problems happen in coding systems and how to correct them systematically.

What Is Print Alignment in Industrial Inkjet Systems?

Print alignment refers to the precise positioning of printed content on a moving substrate.

It includes:

1、Horizontal alignment (left-right positioning)

2、Vertical alignment (top-bottom positioning)

3、Timing synchronization with conveyor movement

Alignment Error Types

Main Causes of Print Alignment Problems

1. Encoder Signal Mismatch (Most Critical Cause)

Industrial printers rely on encoders to synchronize printing with conveyor speed.

If encoder signals are unstable:

1）Print timing becomes inaccurate

2）Content shifts unpredictably

3）Barcodes become unreadable

2. Conveyor Speed Variation

Even small speed fluctuations cause:

1）Uneven spacing between prints

2）Compression or stretching of codes

3）Misaligned batch data

3. Printhead Mounting Instability

Physical movement of the printhead leads to:

1）Mechanical drift

2）Angle deviation

3）Distance inconsistency

4. Incorrect Software Calibration

Wrong settings can cause:

1）Offset errors

2）Incorrect print positioning

3）Repeated misalignment patterns

5. Vibration in Production Line

High-speed machinery causes:

1）Micro-shifts in print position

2）Blurred alignment

3）Random positioning errors

Alignment Diagnostic Matrix

Quick Diagnosis Table

How to Fix Print Alignment Problems

1. Encoder Calibration and Replacement

Steps:

1）Check encoder signal stability

2）Recalibrate pulse ratio

3）Replace faulty encoder if necessary

2. Synchronize Conveyor and Printer Speed

Ensure:

1）Constant conveyor velocity

2）No sudden acceleration or deceleration

3）Proper signal synchronization

3. Mechanical Fixing of Printhead

Best practices:

1）Tighten mounting brackets

2）Use vibration-resistant supports

3）Maintain fixed print distance

4. Software Offset Adjustment

Modern systems allow:

1）X/Y axis correction

2）Timing delay adjustment

3）Automatic alignment compensation

5. Install Vibration Dampening System

Recommended solutions:

1）Shock-absorbing mounts

2）Anti-vibration frames

3）Isolated print zones

Industrial Alignment Correction Flow

Engineering Insight

In industrial coding systems, alignment problems are often misdiagnosed as printer issues. In reality, more than 70% of alignment failures are caused by synchronization errors between mechanical motion and signal processing systems, not the printhead itself.

Factories that implement encoder-based closed-loop synchronization achieve significantly higher print accuracy in high-speed environments.

Common Mistakes in Alignment Correction

× Mistake 1: Only adjusting software without checking hardware

Mechanical issues remain unresolved.

× Mistake 2: Ignoring conveyor fluctuations

Even minor speed variation causes persistent misalignment.

× Mistake 3: Over-tightening printhead mounts

This can introduce vibration transmission instead of reducing it.

FAQ

Why does my print keep shifting during production?

Most likely due to encoder signal instability or conveyor speed variation.

Can alignment be fixed without replacing equipment?

Yes, most cases can be corrected via calibration and mechanical adjustment.

What is the most accurate alignment system?

Encoder-based closed-loop synchronization systems provide the highest precision.
