In industrial manufacturing, aluminum is often treated as one material.

From a purchasing perspective, this makes sense.

A factory may specify aluminum housings, aluminum frames, or aluminum components as a single category.

However, from a printing engineering perspective, aluminum is not one surface.

A CNC-machined aluminum bracket, an anodized electronics enclosure, a brushed aluminum panel, and an extruded profile may all share the same base material, but their finished surfaces can behave very differently during industrial inkjet printing.

The reason is simple:

Printing performance is determined by the final surface condition—not only by the material underneath.

Manufacturing processes such as:

1. Machining

2. Anodizing

3. Brushing

4. Sandblasting

5. Extrusion

6. Casting

change the physical characteristics that influence coding quality.

These changes can affect:

1. Character visibility

2. Barcode readability

3. Print positioning

4. Inspection efficiency

5. Production consistency

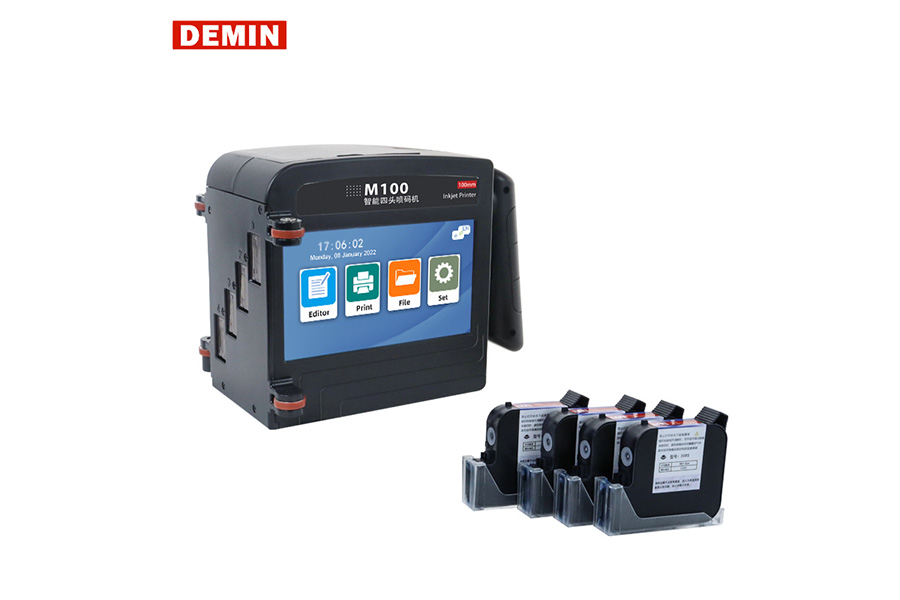

For manufacturers using handheld inkjet printers on aluminum components, understanding surface finish is often the difference between a stable production process and repeated adjustment.

As part of our broader guide, Printing on Different Materials with Handheld Inkjet Printers: The Complete Industrial Guide, aluminum represents a unique category where manufacturing process and surface engineering directly influence printing results.

This article explains how engineers evaluate aluminum finishes before implementing an industrial coding solution.

What Engineers Actually See on the Production Floor

A common assumption is:

"If the printer works on aluminum, it should work on all aluminum parts."

Real production environments prove otherwise.

Consider three components arriving at the same factory:

Part A

A CNC-machined aluminum mounting bracket.

Surface:

1. Visible machining lines

2. Directional texture

3. Limited flat areas

Part B

An anodized aluminum electronic enclosure.

Surface:

1. Controlled oxide coating

2. Uniform appearance

3. High cosmetic requirements

Part C

An extruded aluminum profile.

Surface:

1. Continuous length

2. Production movement

3. Variable positioning requirements

All three are aluminum.

All three may use the same handheld inkjet printer.

Yet the production results may be completely different.

One may produce excellent readable codes immediately.

Another may require adjustments to:

1. Print location

2. Inspection method

3. Production positioning

4. Quality verification

The difference is usually not the printer.

It is the surface condition created during manufacturing.

The Four Surface Characteristics That Influence Printing

Instead of classifying aluminum only by product name, engineers usually evaluate four practical surface characteristics.

1. Surface Texture

Texture determines how consistent the printed area appears.

Examples:

1) Machining marks

2) Brushing patterns

3) Sandblasted surfaces

A highly directional texture may influence visual perception because printed characters interact with the background pattern.

2. Surface Reflectivity

Reflection affects inspection.

A polished or highly finished aluminum surface may produce glare under factory lighting.

The code may be physically correct but appear inconsistent during:

1) Manual inspection

2) Camera inspection

3) Barcode scanning

3. Surface Uniformity

A stable printing process requires a stable surface.

Variations caused by:

1) Different suppliers

2) Different finishing batches

3) Different processing conditions

may create inconsistent production results.

4. Surface Geometry

The printing area itself matters.

Aluminum parts are often complex shapes:

1) Curved housings

2) Narrow profiles

3) Machined components

4) Structural sections

The available flat printing area influences positioning accuracy.

Aluminum Surface Finish Decision Matrix

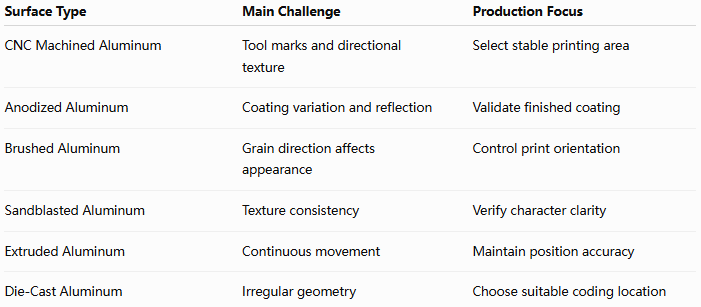

Before approving a printing process, engineers can evaluate aluminum parts using a surface-based approach.

This type of evaluation is more useful than simply asking:

"Can this printer print on aluminum?"

The better question is:

"What type of aluminum surface will this printer encounter in production?"

How Different Manufacturing Processes Change Printing Conditions

CNC Machined Aluminum

Machining creates a surface with directional tool patterns.

Common applications include:

1. Industrial equipment parts

2. Automation components

3. Precision brackets

The main consideration is not whether printing is possible.

The challenge is selecting a location where:

1. Texture does not interfere with readability

2. The part can be positioned consistently

3. Inspection remains simple

Anodized Aluminum

Anodizing is widely used for:

1. Electronics

2. Outdoor equipment

3. Industrial housings

However, anodized surfaces vary depending on:

1. Coating process

2. Thickness

3. Color

4. Supplier quality

A black anodized enclosure and a natural anodized profile may require different validation methods.

Brushed Aluminum

Brushed surfaces create directional visual patterns.

For these products, print orientation becomes important.

A code printed across the brushing direction may appear different from one printed along the same direction.

Engineering validation should consider the relationship between:

1. Grain direction

2. Viewing angle

3. Scanner position

Extruded Aluminum

Extruded profiles create a unique production environment.

Unlike individual parts, extrusion products are often:

1. Long

2. Continuously moving

3. Cut after production

The main challenge becomes process consistency:

1. Maintaining print location

2. Synchronizing movement

3. Ensuring repeatable identification

Aluminum Printing Troubleshooting: Why Similar Parts Produce Different Results

When aluminum coding projects fail, the cause is often misunderstood.

Many manufacturers initially focus on the printer settings:

1. Print speed

2. Character size

3. Ink type

4. Print distance

These factors matter, but they are not always the root cause.

In many cases, inconsistent printing originates from differences in the aluminum surface itself.

The following situations represent common production challenges and the engineering approach used to solve them.

Situation 1: The Code Looks Clear on One Aluminum Part but Poor on Another

Possible Cause

The two parts may have different surface finishes, even if they are made from the same aluminum alloy.

For example:

1. One component is CNC machined.

2. Another component is anodized.

3. Both are simply described as "aluminum parts."

The manufacturing process creates different surface conditions.

Engineering Approach

Instead of adjusting the printer immediately, engineers should compare:

1. Surface texture

2. Reflectivity

3. Manufacturing supplier

4. Finishing process

5. Printing location

The goal is to identify whether the difference comes from the printing system or from the component surface.

Situation 2: Barcode Scanning Becomes Unstable Under Factory Lighting

Possible Cause

Highly reflective aluminum surfaces can create inconsistent visual contrast.

This is especially common with:

1. Polished aluminum

2. Decorative finishes

3. Certain anodized surfaces

The printed information may exist correctly, but inspection equipment may struggle to recognize it consistently.

Engineering Approach

The solution may involve:

1. Adjusting inspection angle

2. Changing print location

3. Standardizing lighting conditions

4. Selecting a less reflective area

In industrial production, readability is not determined only by the printed mark itself.

It depends on the entire inspection environment.

Situation 3: The Same Printing Parameters Do Not Work After Supplier Changes

Possible Cause

A new supplier may deliver aluminum parts with:

1. Different finishing processes

2. Different surface roughness

3. Different cleaning methods

4. Different protective coatings

Even when the drawing specification remains unchanged, the final surface condition may differ.

Engineering Approach

Before approving a new supplier, manufacturers should repeat printing validation using actual production samples.

This prevents unexpected problems after mass production begins.

Situation 4: Printing Quality Changes Between Production Batches

Possible Cause

Batch variation.

Common sources include:

1. Different anodizing batches

2. Different machining conditions

3. Surface contamination

4. Temporary protective films

Engineering Approach

Create a surface acceptance standard.

Instead of evaluating only the printed result, define:

1. Approved surface condition

2. Approved printing location

3. Inspection method

4. Acceptable variation range

This converts printing from an operator-dependent activity into a controlled production process.

Aluminum Surface Selection: A Practical Engineering Decision Tree

When introducing a new aluminum product, engineers can follow a simple evaluation path.

This approach prevents a common mistake:

Choosing a printing solution before understanding the actual production surface.

Not sure which printer fits your application?

Consulting experts' advice

Industrial Application Examples

Different industries encounter different aluminum printing challenges because their products have different requirements.

Application 1: Aluminum Electronic Enclosures

Typical products:

1. Control boxes

2. Instrument housings

3. Electrical cabinets

Common surface finishes:

1. Anodized aluminum

2. Brushed aluminum

Main requirements:

1. Clean appearance

2. Clear serial numbers

3. Reliable identification during maintenance

Engineering focus:

The printing area must balance appearance requirements with long-term readability.

Application 2: Automotive Aluminum Components

Typical products:

1. Structural parts

2. Mechanical housings

3. Precision components

Common surface finishes:

1. CNC machined

2. Cast aluminum

3. Processed aluminum surfaces

Main requirements:

1. Production traceability

2. Assembly identification

3. Batch tracking

Engineering focus:

Consistency across high-volume manufacturing environments.

Application 3: Aluminum Industrial Profiles

Typical products:

1. Machine frames

2. Conveyor structures

3. Solar mounting systems

Common surface:

1. Extruded aluminum

Main requirements:

1. Continuous identification

2. Stable print position

3. Efficient production flow

Engineering focus:

Integration with the manufacturing process rather than individual part marking.

Connecting Aluminum and Other Coated Metal Applications

Many manufacturers do not work with aluminum alone.

A production facility may process:

1. Aluminum housings

2. Painted steel panels

3. Powder-coated machine parts

Although these materials belong to the broader metal category, their finished surfaces create different coding considerations.

For manufacturers working with coated metal products, Printing on Powder-Coated and Painted Metal Products provides a deeper analysis of how protective surface layers influence industrial marking performance.

This distinction is important because the challenge is often not the metal itself, but the surface layer created during manufacturing.

Engineering Notes Before Production Approval

Before releasing aluminum coding into regular production, experienced engineering teams usually confirm the following:

Surface Definition

The production specification should clearly identify:

1. Material

2. Surface finish

3. Supplier

4. Processing method

Printing Area Definition

The product drawing should specify:

1. Approved coding location

2. Maximum surface variation

3. Inspection position

Validation Method

The team should define:

1. How codes are inspected

2. What readability standard is required

3. How production variation is handled

Change Management

Any modification to:

1. Surface finishing supplier

2. Manufacturing process

3. Product design

should trigger a review of printing performance.

Aluminum Printing Implementation Checklist

Before introducing industrial inkjet coding for aluminum parts, manufacturers should confirm several production factors.

A successful printing process is rarely determined by a single parameter.

It is the result of matching:

1. The aluminum surface condition

2. The production environment

3. The identification requirement

4. The inspection method

The following checklist can help engineering teams evaluate a new aluminum application.

1. Confirm the Final Surface Condition

Do not evaluate printing performance using unfinished materials when production parts will have a final surface treatment.

Confirm:

√ Final anodizing condition
√ Final machining finish
√ Brushed or textured surface direction
√ Coating or protective layer condition
√ Supplier consistency

The surface that enters production is the surface that should be tested.

2. Define the Identification Purpose

Different products require different coding objectives.

Examples:

Internal Manufacturing Tracking

Focus:

1) Easy operator recognition

2) Production batch identification

3) Process management

Customer Traceability

Focus:

1) Long-term readability

2) Serial number accuracy

3) Service information

Automated Production Recognition

Focus:

1) Barcode scanning

2) QR code reliability

3) Machine vision compatibility

Understanding the purpose prevents unnecessary requirements and helps engineers design a more efficient coding process.

3. Select the Correct Printing Location

The best printing location is not always the largest available area.

A good coding location should provide:

1) Stable surface geometry

2) Easy operator access

3) Reliable inspection position

4) Protection from mechanical contact

For aluminum components, avoid areas affected by:

1) Frequent assembly contact

2) Sharp edges

3) Heavy machining variation

4) Curved transitions

4. Validate Under Real Production Conditions

Laboratory samples are useful, but production validation provides the most reliable information.

Testing should include:

1) Actual finished parts

2) Actual factory lighting

3) Actual inspection method

4) Actual operator workflow

A code that looks acceptable in an office environment may perform differently on a production floor.

Engineering Questions Before Selecting a Coding Solution

Does aluminum alloy determine printing performance?

Not usually by itself.

The finished surface created by manufacturing processes often has a greater influence on printing consistency than the aluminum alloy classification.

Engineers should evaluate the actual production surface rather than relying only on material specifications.

Should every aluminum product receive separate validation?

For critical production environments, yes.

Different finishes can create different printing conditions.

A validated process for one product should not automatically be transferred to another component with a different surface treatment.

Can aluminum printing challenges be solved only by changing printer settings?

Not always.

Adjusting printing parameters may help, but many problems originate from:

1. Surface inconsistency

2. Poor print location

3. Inspection conditions

4. Manufacturing variation

A complete solution usually requires evaluating the entire process.

Why is surface finish important for industrial traceability?

Because traceability depends on readable information throughout the product lifecycle.

If a barcode, serial number, or identification code cannot be consistently recognized, the traceability system becomes unreliable.

Building a Reliable Aluminum Coding Strategy

A mature manufacturing approach does not treat printing as an isolated operation.

Instead, coding becomes part of product engineering.

The most reliable companies integrate printing considerations during:

1. Product design

2. Supplier qualification

3. Manufacturing planning

4. Quality inspection

5. Process improvement

This approach creates several advantages:

1. Reduced production adjustments

2. Lower inspection effort

3. Improved traceability

4. More stable manufacturing output

For companies also working with stainless steel components, the same engineering principle applies, although the challenges are different. Stainless steel applications often focus more on long-term durability and identification life cycles, as discussed in Permanent Coding on Stainless Steel: Challenges and Best Practices.

Surface Engineering Determines Printing Success

Aluminum printing performance is not defined by the word "aluminum" alone.

The final surface created by machining, anodizing, brushing, extrusion, or casting determines how manufacturers should approach industrial coding.

A reliable aluminum printing process begins with three questions:

1. What surface condition will actually enter production?

2. How will the identification be used throughout the product lifecycle?

3. How will readability be verified under real operating conditions?

Manufacturers that answer these questions before implementation can avoid repeated adjustments and create a more stable production environment.

The goal is not simply to print on aluminum.

The goal is to create a repeatable identification process that supports manufacturing efficiency and product traceability.

Improve Your Aluminum Part Coding Process

If your company manufactures aluminum components and needs reliable industrial identification, our team can help evaluate your application.

We can support:

1. Aluminum surface evaluation

2. Sample printing testing

3. Barcode and QR code verification

4. Production workflow assessment

5. Handheld inkjet printer selection

6. Customized industrial coding solutions
